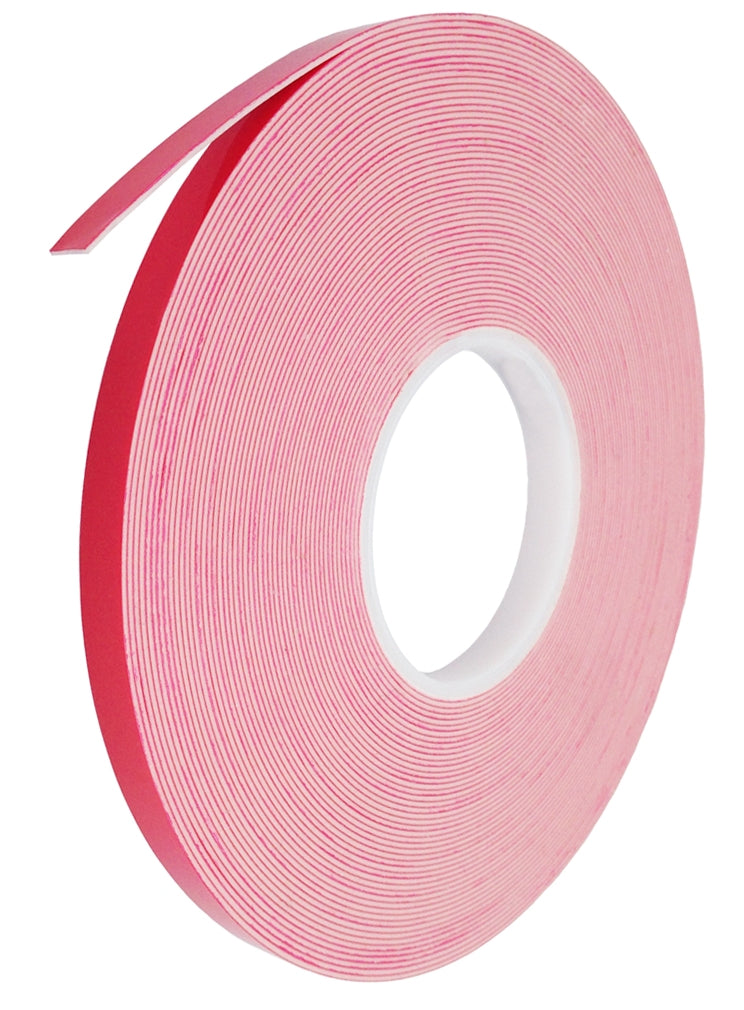

FA-UHB16W Ultra High Bond Foamed Acrylic Tape with Red PE liner 72 Yard 16 mil Thick Roll White (Case)

FA-UHB16W White Foamed Acrylic Double-Coated Tape — 72 Yard Roll, 16 Mil

A premium ultra-high-bond double-coated acrylic foam tape engineered for demanding industrial and electronics assembly applications. The FA-UHB16W features a white foamed acrylic core with a red PE liner, delivering exceptional adhesion to metals, plastics, and painted surfaces without mechanical fasteners.

Key Performance Data

• Thickness: 16 mils (0.40mm), exclusive of liner
• 90° Peel Adhesion: 125 oz/in (20 min) | 161 oz/in (24 hrs)
• Tensile Strength: 88 lb/in²
• Dynamic Shear (SST): 132 lb/in²
• Temperature Resistance: -40°F to 356°F (-40°C to 180°C)
• UV Resistance: Good
• Core: 3" plastic core
• Liner: Red PE release liner
• Roll Length: 72 yards (66 meters)

Common Applications

• Electronics assembly — computers, consumer electronics, white goods
• Bonding thin sheet metal and rigid plastics
• Component mounting in high-stress environments
• Replacing rivets, screws, and liquid adhesives

Available Widths (per case)

• 1/4" (6.3mm) — 48 rolls/case
• 3/8" (9.5mm) — 32 rolls/case
• 1/2" (12.7mm) — 24 rolls/case
• 3/4" (19.0mm) — 16 rolls/case
• 1" (25.4mm) — 12 rolls/case

Priced and sold by the case. Select your width above.

Alternative to 3M #4920; Hi-Bond #6040G.
