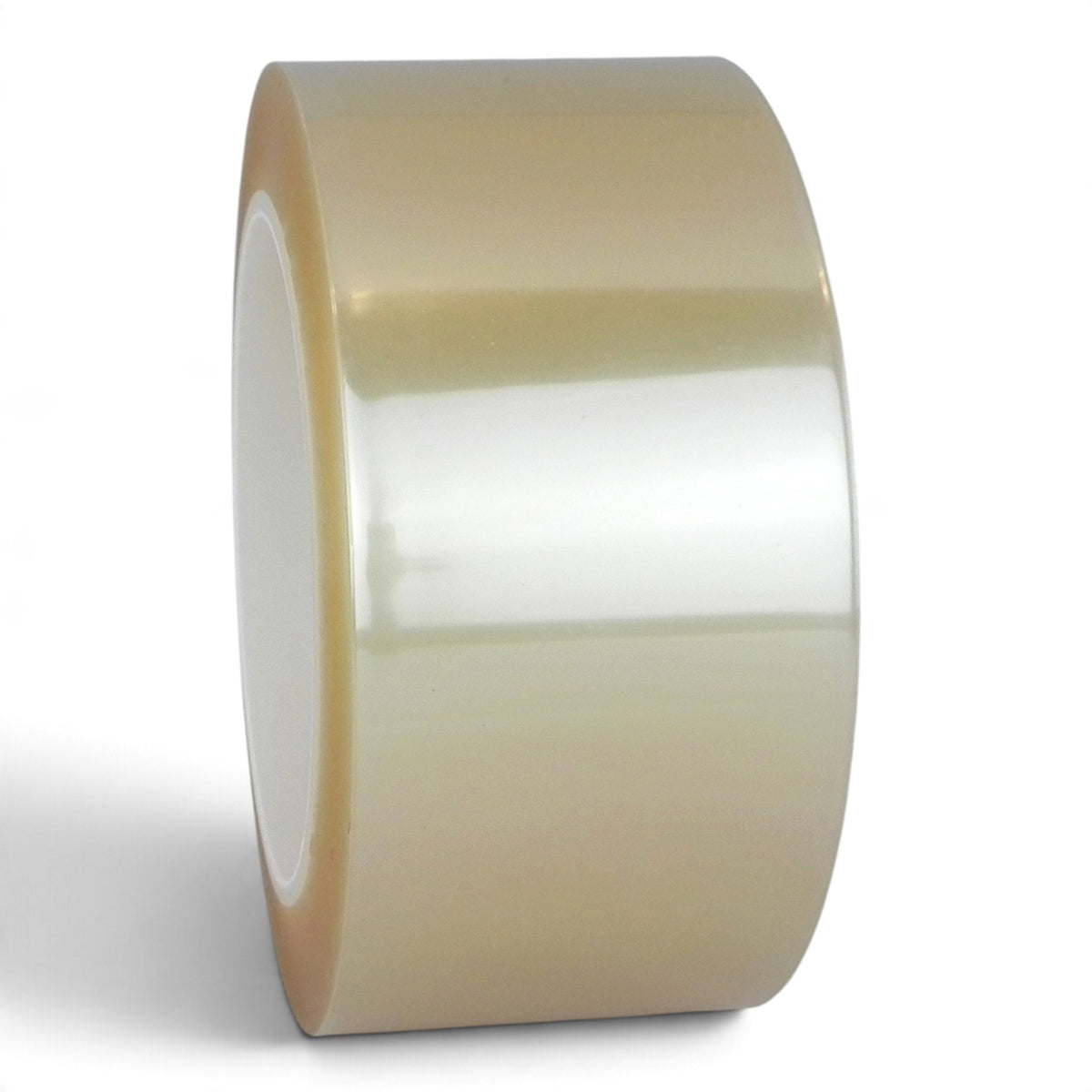

MYP-25CA Polyester Splicing and Printed Circuit Board Tape 72 Yard 2.4 mil Thick with Acrylic Adhesive Clear (Case)
MYP-25CA Polyester Splicing and Printed Circuit Board Tape 72 Yard 2.4 mil Thick with Acrylic Adhesive Clear (Case)
Details
MYP-25CA Clear Polyester Splicing & PCB Tape — 2.4 mil, Acrylic Adhesive
A premium 2.4 mil polyester film tape with 1.4 mils of electrical-grade acrylic adhesive. Engineered for demanding industrial and electronics applications where chemical resistance, thermal stability, and dielectric performance are critical.
Key Applications
- Component packaging & electrical insulation
- Printed circuit board (PCB) masking
- Edge reinforcement on books and webs
- Polyester film splicing
Performance Specifications
- Total Thickness: 2.4 mil (1.0 mil film + 1.4 mil adhesive)
- Adhesion to SST: 35 oz/in
- Tensile Strength: 24 lbs/in
- Elongation: 100%
- Dielectric Strength: 5.5 kV
- Max Temperature: 300°F / 30 min
- UL Rating: UL510 Class B (130°C / 266°F)
Resistance Properties
Exhibits high resistance to abrasives, acids, oils, solvents, heat, chemicals, aging, staining, and water immersion.
Roll Specifications
- Length: 72 YD (66M) per roll
- Core: 3" plastic core
- Available in widths from 1/4" to 4" — sold by the case
Alternative to 3M #853, #856; Saint Gobain #M60; Scapa #525.
