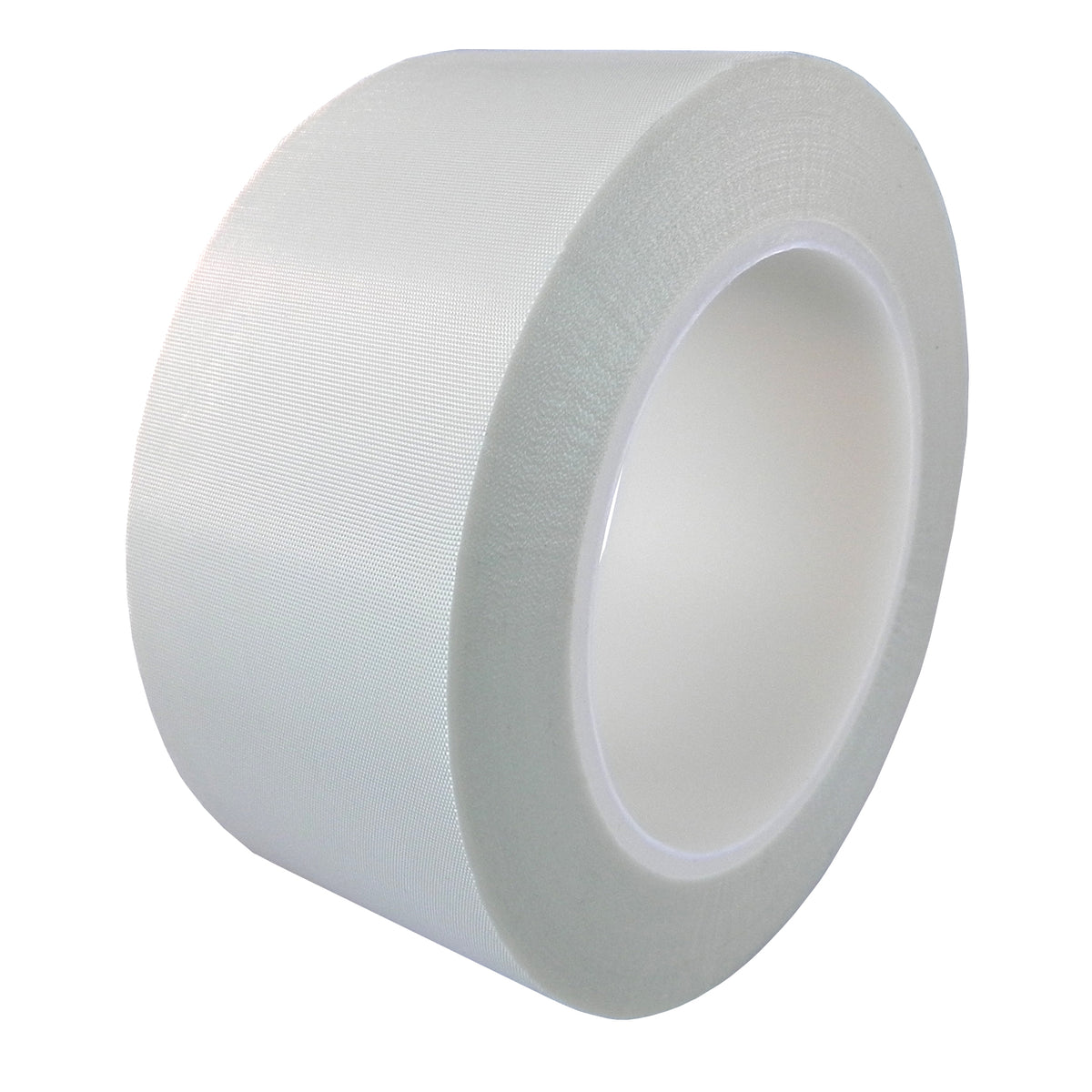

GC-SH7 Glass Cloth Silicone Tape – 7.6 Mil, 36 YD, Natural White | Thermal Spray Masking (Case)

GC-SH7 Glass Cloth / Silicone Adhesive Tape

Engineered for demanding industrial applications, this 7.6 mil electrical-grade glass cloth tape features a high-performance silicone adhesive that holds strong from -100°F to 500°F. Ideal for thermal spray and plasma spray masking, electrical insulation, coil armor wrap, and high-heat bundling.

Key Specifications

• Thickness: 7.6 mil
• Length: 36 YD (33M) per roll
• Core: 3" plastic core
• Color: Natural White
• Adhesion: 35 oz/in
• Tensile Strength: 140 lbs/in
• Elongation: 10%
• Dielectric Strength: 3.5 kV
• Temperature Range: -100°F to 500°F
• UL510 Insulation Class: 200°C (UL Class H)

Performance Features

• Conformable and flexible for complex surface masking
• Chemical and solvent resistant
• Printable surface
• Flame retardant

Certifications & Compliance

• UL510 Listed
• Meets MIL-I-19166C, Type 7
• Meets FAR 25.853

Common Applications

• Thermal spray / plasma spray masking
• Electrical apparatus insulation
• Coil armor wrap
• High-heat sealing and bundling
• Non-electrical applications requiring flame retardancy

Alternative to 3M #69 & #361; Nitto/Permacel #P-212; Scapa #C401; T&F #3807;
Greenbelt #160-5S; IPG #4618 & #RG48; Taconic #6605-07D-NL; Dewal #469;
Ideal #IT-7300; St. Gobain/Furon #2915-7, #G565 & #G561; Chemfab #340-TS;
Lanmar #715-7; AFC #380-07S.
