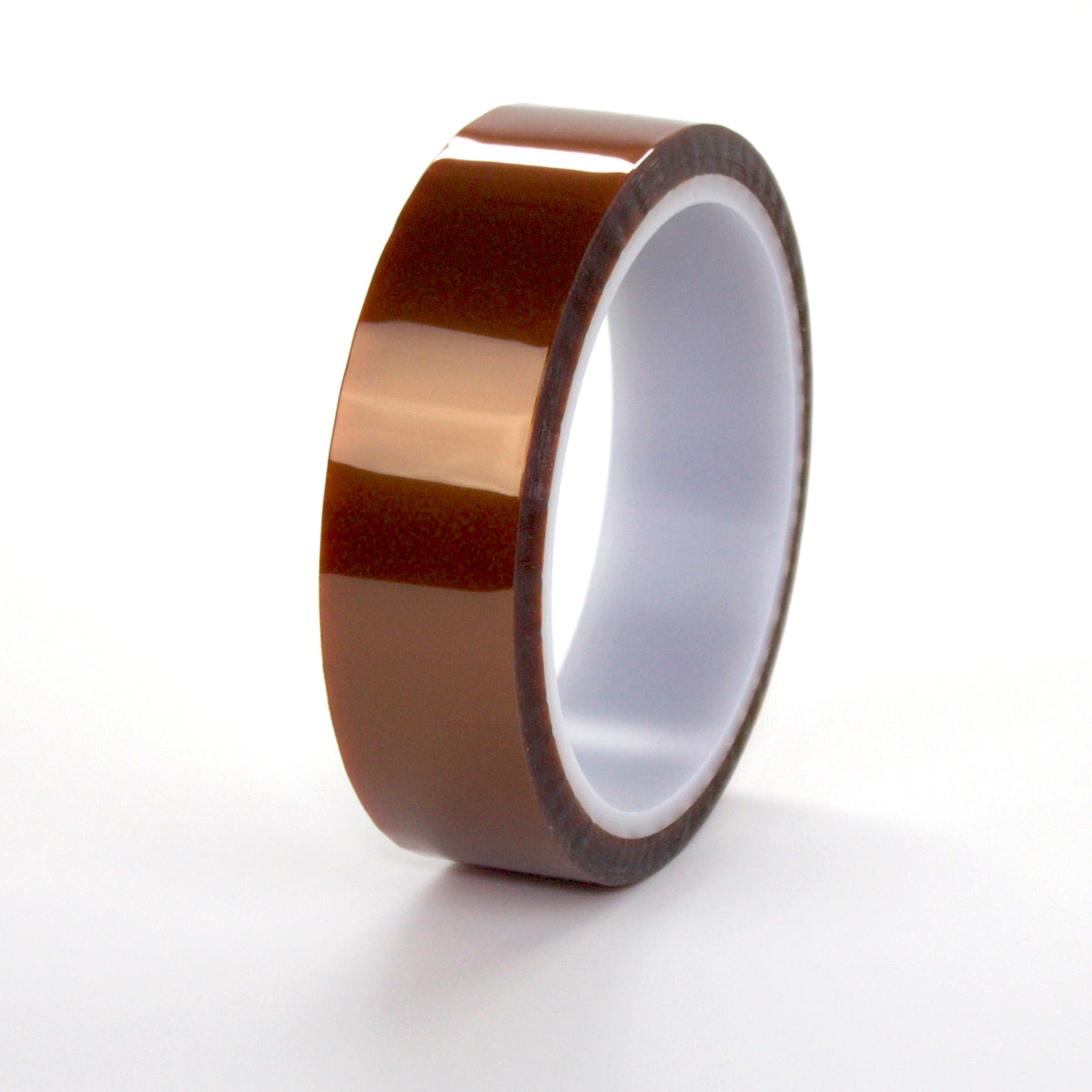

KPT-1 Kapton™ Alternative Polyimide Tape | 2.6 mil | 36 YD | Gold/Amber | Case

KPT-1 Wave Solder / Hot Air Leveling Tape — Case Pricing

A 1 mil electrical-grade Kapton™ alternative polyimide film coated with a high-performance silicone adhesive. Engineered for wave soldering and hot air leveling (HAL) processes, this tape delivers reliable masking, minimal residue, and clear visibility during board processing.

Key Features

• Thin and conformable — conforms tightly to PCB surfaces and gold contacts
• Adhesive thermosets under heat to increase bond strength during processing
• Leaves minimal residue after removal — reduces cleanup time and rejects
• Transparent gold/amber film allows visual inspection during processing
• Protects gold contacts from molten solder during HAL process
• Outstanding tear and abrasion resistance at elevated temperatures
• Excellent resistance to acids, oils, solvents, water, aging, and staining

Technical Specifications

• Film Thickness: 1 mil
• Tape Thickness: 2.6 mil
• Adhesion: 23.8 oz/in
• Tensile Strength: >20.6 lbs/in
• Elongation: >30%
• Dielectric Strength: >4,000 V
• Temperature Resistance: 200°C (392°F) / 30 min
• Film Color: Gold/Amber (transparent)
• Core: 3" plastic core
• Length: 36 YD (33M) per roll

Compliance & Standards

• Film meets UL 510
• Formulated to meet MIL-P-46112B

Cross-Reference / Equivalent To

Alternative to: Dielectric Polymer #NT-590 · Permacel #P-221 · 3M #5419 & #5433 · Shurtape #6325-01 · Scapa #557 · St. Gobain/Furon #2345-1 · Dewal #304-1 · Ideal #9321 & #IT-7170 · TLC #CT961 · Specialty Tapes #S2210 · Lanmar #595-1 · Chemfab #360-1S · Tesa #4428

™ DuPont Trademark
