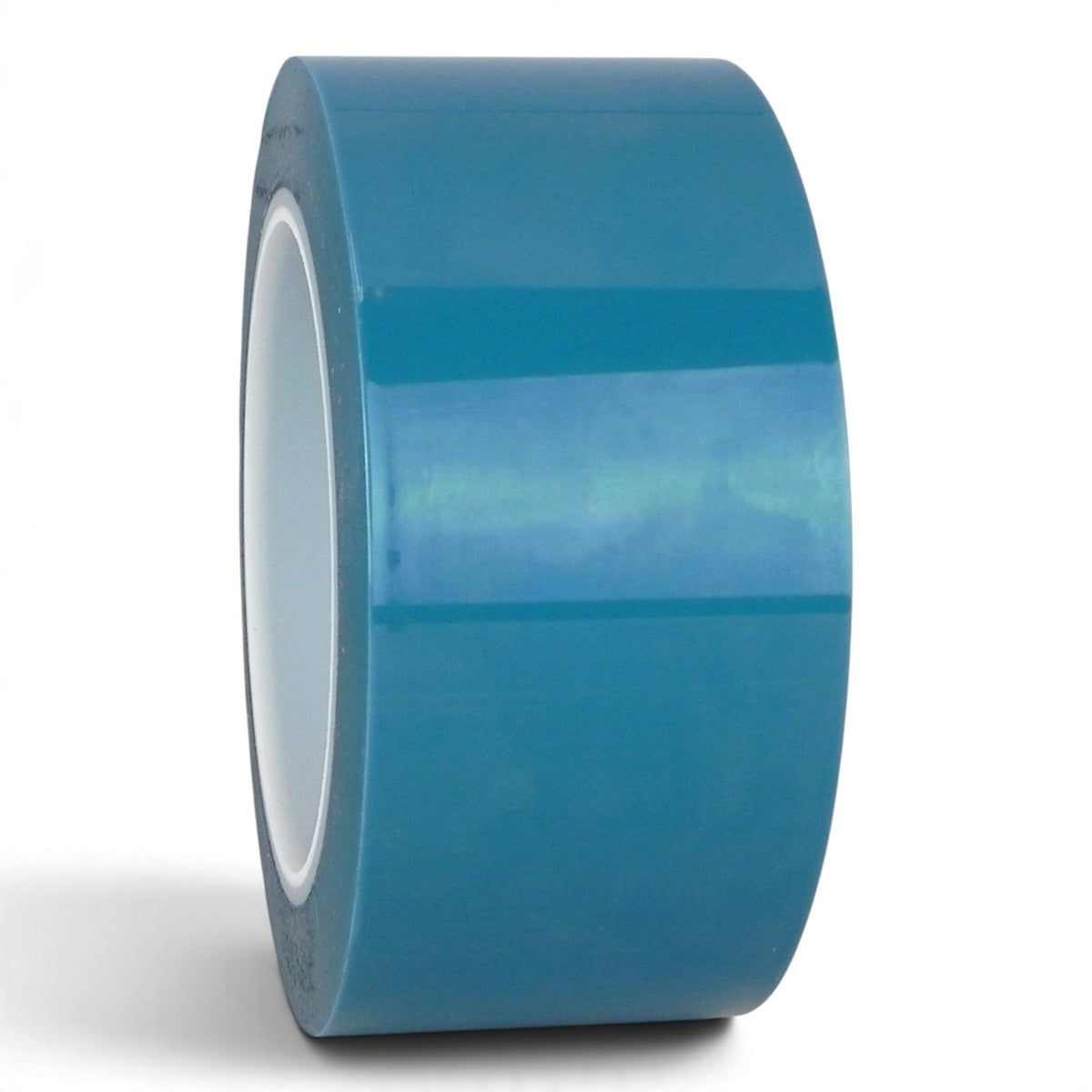

MYP-3US Blue Polyester Splicing and Printed Circuit Board Tape 72 Yard 3 mil Thick with Silicone Adhesive (Case)
MYP-3US Blue Polyester Splicing and Printed Circuit Board Tape 72 Yard 3 mil Thick with Silicone Adhesive (Case)
Details
MYP-3US — Blue Polyester Tape with Silicone Adhesive
A 3.0 mil total thickness tape combining a 1 mil polyester film with 2 mils of silicone adhesive. The industry-standard plater's tape for printed circuit board production — engineered for clean masking, chemical resistance, and clear visibility of circuitry after application.
Key Applications
- Masking during printed circuit board production
- Tin/lead stripping and gold tab plating operations
- Surface protection from chemical splashes and fumes
- Splicing silicone-coated paper and films
Performance Specifications
| Property | Value |
|---|---|
| Total Thickness | 3.0 mil |
| Film | 1 mil polyester (blue) |
| Adhesive | 2 mil silicone |
| Adhesion | 30 oz/in |
| Tensile Strength | 25 lbs/in |
| Elongation | 90% |
| Max Temp. Resistance | 220°C (428°F) / 30 min |
| Core | 3" plastic core |
Key Features
- Resists chemical fumes and splashes — minimum residue on removal
- Blue film allows visibility of circuitry after masking
- Film will not break or split during application or removal
Alternative to Ideal #9190; Scapa #581; Permacel P-377; St. Gobain #M741; 3M
#8951; Berry Global #781.
